  <div class="ad-01">
 <div class="ad-01-title">
   场内电动车行业
 </div>
 <div class="ad-01-img">

 </div>

</div>
  <div class="m-cx-cpgs-ts4-3-01">
 <div class="m-cx-cpgs-ts4-3-01-pic">
  <div class="m-cx-cpgs-ts4-3-01-prev"></div>
  <div class="m-cx-cpgs-ts4-3-01-next"></div>
  <div class="m-cx-cpgs-ts4-3-01-pic-con swiper-container">
   <ul class="swiper-wrapper">

     <li class="swiper-slide"><img alt="高尔夫球车电源解决方案" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_116.jpg" title=""></li>

   </ul>
   <!-- 如果需要分页器 -->
   <div class="m-cx-cpgs-ts4-3-01-page"></div>
  </div>
 </div>
 <div class="m-cx-cpgs-ts4-3-01-tit">
   高尔夫球车电源解决方案
 </div>
 <div class="m-cx-cpgs-ts4-3-01-desc endit-content2">
   <p>
    <em><b>锂电池容量：</b>48V200Ah</em> <em><b>充电器：</b>48V25A</em> <em><b>设计要求：</b>高尔夫球车的电源解决方案，需要电池体积小，维护简单，同时需要安全、稳定......</em>
</p>
 </div>
 <div class="clear"></div>


</div>
  <div class="m-cx-cpxq-01">
 <div class="m-cx-cpxq-01-tit">
  <span>产品简介</span>
  <em>/ Introduction</em>
 </div>
 <div class="m-cx-cpxq-01-desc endit-content2">
   <style>
    .headliner {
        height: 130px;
        margin-top: 60px;
        text-align: center;
    }

    .headliner h2 {
        font-size: 28px;
        color: #43ac74;
        line-height: 50px;
    }

    .headliner h2 span {
        color: #333;
    }

    .headliner h2 em {
        font-size: 14px;
        color: #999;
        text-transform: uppercase;
        display: block;
        font-style: normal;
        font-weight: normal;
    }

    .headliner h2 em:before {
        content: "";
        width: 40px;
        height: 5px;
        background: #43ac74;
        margin: 0 auto;
        display: block;
    }
    /**/

    .production-feather {
        height: 47rem;
        background: #f5f5f5;
    }

    .production-feather dl {
        width: 48%;
        height: 20rem;
        padding-top: 2rem;
        float: left;
        margin-right: 0.3rem;
        margin-top: 1rem;
    }

    .production-feather dl::nth-of-type(2n) {
        margin-right: 0;
    }

    .production-feather dl:hover {
        background: #0f1583;
    }

    .production-feather dl dt {
        width: 100px;
        height: 100px;
        border: 1px solid #0f1583;
        border-radius: 10px;
        margin: 0 auto;
        text-align: center;
        line-height: 100px;
    }

    .production-feather dl:hover dt {
        border: 1px solid #fff;
    }

    .production-feather dl dt img {
        width: 80px;
        height: 80px;
    }

    .production-feather dl dt em.xs {
        display: block;
    }

    .production-feather dl dt em.yc {
        display: none;
    }

    .production-feather dl:hover em.xs {
        display: none;
    }

    .production-feather dl:hover em.yc {
        display: block;
    }

    .production-feather dl dd {
        text-align: center;
        margin-top: 20px;
    }

    .production-feather dl:hover dd {
        background: #0f1583;
    }

    .production-feather dl:hover dd h3 {
        color: #fff;
    }

    .production-feather dl dd h3 {
        font-size: 20px;
        color: #0f1583;
    }

    .production-feather dl dd p {
        font-size: 14px;
        color: #999;
    }

    .production-feather dl:hover dd p {
        color: #fff;
    }
</style>
<p class="img-block">
    <img align="center" alt="QY500H智能充电器" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_134.jpg" title="QY500H智能充电器">
</p>
<p>

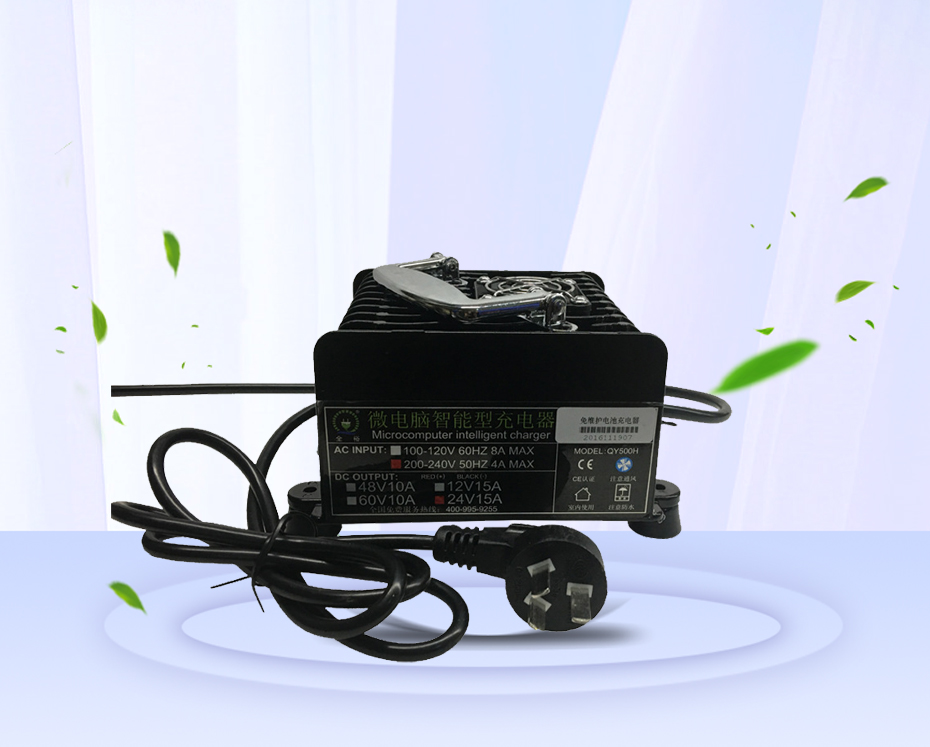

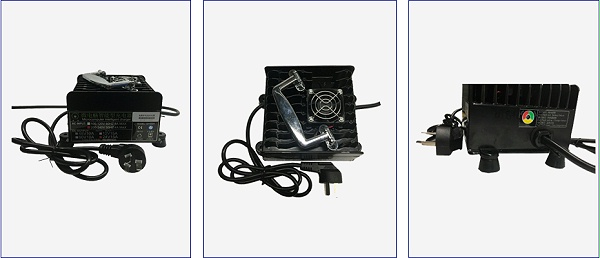

    全裕智能充电器——智能充电，自动关机
</p>
<p>
    适用于各品牌手推式洗地机，电动堆高车，agv搬运车等。
</p>
<p>
    五段式充电，防反接保护。
</p>
<p class="img-block">
    <img align="center" alt="QY500H智能充电器1" src="/mobile/resource/images/c2a232f95e3745cca4c004e2efbc8ca9_70_copy.jpg" title="QY500H智能充电器1">
</p>
<div class="headliner">
    <h2>

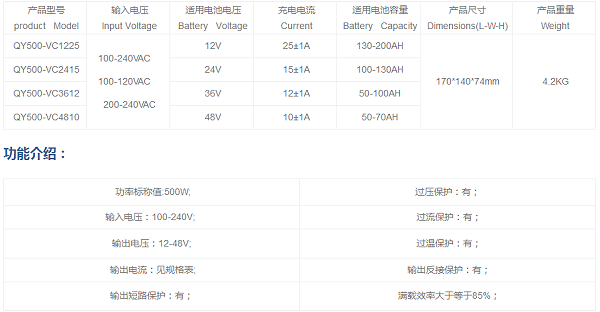

		<span>产品参数</span> 用数据说话<em>Product parameters speak with data</em>
	</h2>
</div>
<p class="img-block">
    <img align="center" alt="技术参数" src="/mobile/resource/images/c2a232f95e3745cca4c004e2efbc8ca9_72_copy.png" title="技术参数">
</p>
<div class="headliner">
    <h2>
		<span>产品特点 </span> 好细节不怕被放大<em>Good details are not afraid of being magnified</em>
	</h2>
</div>
<div class="production-feather">
    <dl>
        <dt>
			<em class="xs"><img align="center" alt="品质" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_8_copy.png" title="品质"></em><em class="yc"><img align="center" alt="品质" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_22_copy.png" title="品质"></em>
		</dt>
        <dd>
            <h3>
				品质保障
			</h3>
            <p>
                28道制作工艺，<br> 保证产品品质
            </p>
        </dd>
    </dl>
    <dl>
        <dt>
			<em class="xs"><img align="center" alt="保护" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_2_copy.png" title="保护"></em><em class="yc"><img align="center" alt="保护" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_16_copy.png" title="保护"></em>
		</dt>
        <dd>
            <h3>
				智能保护
			</h3>
            <p>
                短路保护、反接保护、过流保护、过温保护、低压保护、过压保护
            </p>
        </dd>
    </dl>
    <dl>
        <dt>
			<em class="xs"><img align="center" alt="风扇" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_6_copy.png" title="风扇"></em><em class="yc"><img align="center" alt="风扇" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_20_copy.png" title="风扇"></em>
		</dt>
        <dd>
            <h3>
				智能控制
			</h3>
            <p>
                智能温控风扇，<br> 节能降噪降热更耐用
            </p>
        </dd>
    </dl>
    <dl>
        <dt>
			<em class="xs"> <img align="center" alt="充电" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_4_copy.png" title="充电"></em><em class="yc"><img align="center" alt="充电" src="/mobile/resource/images/1f09abb836764c84929bc28ccf53229b_18_copy.png" title="充电"></em>
		</dt>
        <dd>
            <h3>
				安全充电
			</h3>
            <p>
                智能脉冲，<br> 五段式充电完成
            </p>
        </dd>
    </dl>
</div>
<div class="headliner">
    <h2>
		<span>产品模式 </span> 五段式充电完成<em>Five-stage charging</em>
	</h2>
</div>
<p class="img-block" style="text-align:center;">
    <img align="center" alt="全裕电子1" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_120.png" title="全裕电子1">
</p>
<p>
    <strong>空载模式：</strong>当充电中，机器接触不良时或更换电瓶时，充电器自动转为空载模式待机！
</p>
<p class="img-block" style="text-align:center;">
    <img align="center" alt="全裕电子" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_122.png" title="全裕电子">
</p>
<p>
    <strong>恒流模式：</strong>当电瓶电压低于充电器设定电压时，为恒流模式，为电瓶提供恒定的电流，保护电瓶！
</p>
<p class="img-block" style="text-align:center;">
    <img align="center" alt="全裕电子" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_124.png" title="全裕电子">
</p>
<p>
    <strong>恒压模式：</strong>PWM精确控制充电器的电流和输出电压，保证电瓶充满电，避免过充！
</p>
<p class="img-block" style="text-align:center;">
    <img align="center" alt="全裕电子" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_126.png" title="全裕电子">
</p>
<p>
    <strong>涓流模式：</strong>当电瓶充满电量值时，充电器自动转化为涓流模式，提供很微弱电流，平衡电量满值，表示充电完成！
</p>
<p class="img-block" style="text-align:center;">
    <img align="center" alt="全裕电子" src="/mobile/resource/images/7fac1e93b60a40f1af3d7e89b1047da0_126.png" title="全裕电子">
</p>
<p>
    <strong>浮充模式：</strong>当电瓶处于将要充满状态时，充电器将专为浮充模式，提供小浮充电流给电充，为电瓶满充！
</p>
<div class="headliner">
    <h2>
		<span>应用范围 </span> 适配各大品牌机型<em>Adapt to Major Brands</em>
	</h2>
</div>
<p class="img-block">
    <img align="center" alt="应用" src="/mobile/resource/images/c2a232f95e3745cca4c004e2efbc8ca9_74_copy.jpg" title="应用">
</p>
<p class="img-block">
    <img align="center" alt="应用" src="/mobile/resource/images/c2a232f95e3745cca4c004e2efbc8ca9_76_copy.jpg" title="应用">
</p>
